Silicon Calcium Barium Aluminum Cored Wire

Name: China Customized Silicon Calcium Barium Aluminum Cored Wire Manufacturers Suppliers - Fengyang Metallurgy
Brand: Fengyang
SKU: 260114107

The Specifications of Cored wire Ferrotitanium cored wire The silicon - calcium - barium - aluminum cored wire is a linear material that uses alloy element powders such as silicon, calcium, barium, and aluminum as the core material, which is tightly wrapped with low - carbon steel strips. It...

Send Inquiry

Product Introduction

The Specifications of Cored wire

Model No.	Chemical Composition (%)	Wire Diameter (mm)	Wire Thickness (mm)	Wire weight (mm)	Power Weight (mm)	Uniformity (mm)
SiCa	Si55Ca28	13	0.4	170	230	2.5 - 5
CaAl	Ca20-50 Al10-30	13	0.4	170	210	2.5 - 5
CaFe	Ca35fe65	13	0.4	170	215	2.5 - 5
SiCaBa	Si55 Ca15 Ba15	13	0.4	170	220	2.5 - 5
SiAlBa	Si35-40 Al12-16 Ba9-15	13	0.4	170	215	2.5 - 5
Carburant	C98 S<0.5	13	0.35	150	150	2.5 - 5
TiFe	Ti25-40	13	0.4	170	510	2.5 - 5
SiCaBaAl	Si30-45 Ca9-14B6-12 A112-18	13	0.4	170	225	2.5 - 5
C	90min		95min		98min

Ferrotitanium cored wire

The Silicon Calcium Barium Aluminum cored wire is a linear material that uses alloy element powders such as silicon, calcium, barium, and aluminum as the core material, which is tightly wrapped with low - carbon steel strips.

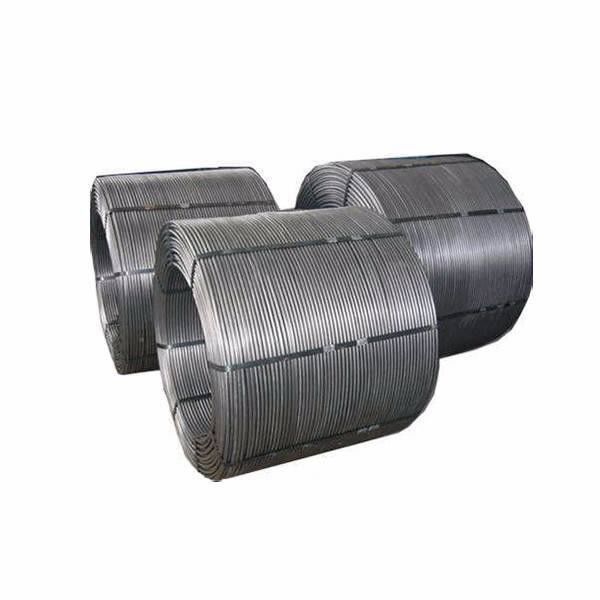

It usually presents as a circular or nearly circular wire. The surface is smooth, generally silver - gray or off - white, and it is packaged in coils.

Functions and Applications

Deoxidation and Desulfurization: Elements such as silicon, calcium, barium, and aluminum have strong deoxidation abilities. They can react with oxygen in molten steel to form stable oxides, thus reducing the oxygen content in steel. At the same time, elements such as calcium and barium can react with sulfur to form sulfides, playing a role in desulfurization and improving the purity of steel.
Changing the Morphology of Inclusions: It can transform the inclusions in steel from coarse, sharp - shaped blocky or strip - shaped ones into fine, rounded spherical or ellipsoidal ones. This reduces the splitting effect of inclusions on the steel matrix and improves the toughness, ductility, and fatigue properties of steel.
Alloying: Elements such as silicon, calcium, barium, and aluminum are important alloying elements. Adding them to steel can improve the strength, hardness, wear resistance, corrosion resistance, etc. of steel, meeting the performance requirements of different types of steel for various applications.
Improving the Fluidity of Molten Steel: It reduces the surface tension of molten steel and improves the fluidity of molten steel. This enables the molten steel to better fill the mold during the pouring process, reducing defects such as misruns and cold shuts, and improving the quality and yield of castings.

Production Process

Batching: According to product requirements, accurately select metal raw materials such as silicon, calcium, barium, and aluminum, and proportion them according to a certain ratio.
Smelting: Put the prepared raw materials into a smelting furnace and conduct high - temperature smelting to form a uniform alloy solution.
Wire Drawing: Perform wire - drawing treatment on the smelted alloy solution to make it into a filament - like core wire.
Coating: Put the core wire into a coater. Through a specific process, use low - carbon steel strips to coat the core wire to form the cored wire.
Heat Treatment: Conduct heat treatment on the coated Silicon Calcium Barium Aluminum cored wire to improve its physical and mechanical properties, such as enhancing strength and toughness.
Inspection: Conduct strict inspections on the finished products, including appearance inspection, dimension measurement, chemical composition analysis, physical property testing, etc., to ensure that the product quality meets the requirements.

Application Fields

Steel - making Industry: During the converter and electric arc furnace steel - making processes, Silicon Calcium Barium Aluminum cored wires are widely used in refining operations such as deoxidation, desulfurization, and alloying. They can effectively improve the quality and performance of steel, and produce various high - quality carbon steels, alloy steels, stainless steels, etc.

Casting Industry: It is used in casting processes such as cast iron and cast steel. It can improve the fluidity of molten iron and molten steel, enhance the compactness and mechanical properties of castings, reduce casting defects, and increase the yield of castings.

Packing and Shipping

Water-Proof Plastic woven bag, 1000kg per bag or as your requirements.

Weigh

Loading truck

Containerize

Load the freighter

Sea transport

unload

Frequently Asked Questions

Q: Does the product accept customized service? What specific aspects can be customized?

A: The size and metal content of the product can be customized.

Q: Are samples provided free of charge?

A: Quality customers can provide samples.

Q: How many years of production experience do you have?

A: Fengyang Metallurgical Co., Ltd., established in 2005, was one of the earliest pioneers in Anyang to supply raw materials to steel plants.

Q: Whether quality inspection can be performed?

A: It can take samples for testing and provide proof of testing.

Q: Is it possible to deliver quickly?

A: Generally, it will be shipped within two weeks.

Q: What is the minimum order quantity?

A: What is the minimum order quantity?

Q: Are customers online 24 hours a day to answer questions?

A: Professional sales team, support before and after sales 24 hours online answer.

Q: What are the after-sales services?

A: Experienced and skilled service team can respond to customer feedback in a timely manner, and quickly solve the problems encountered by customers in the use of products to ensure that customers have no worries.
